Duplex Color Doppler Study of Uterine Artery in Early Diagnosis of Preeclampsia
Sultana S1*, Yasmin T2, Mollah MNU3, Roy SK4, Hossain MS4, Al-Amin A4
1Department of Radiology & Imaging, Apollo Hospitals Dhaka, Dhaka, Bangladesh; 2Department of Radiology & Imaging, Enam Medical College & Hospital, Dhaka, Bangladesh; 3Department of Oncology, Bangabandhu Sheikh Mujib Medical University, Dhaka, Bangladesh; 4Department of Radiology & Imaging, Sir Salimullah Medical College & Mitford Hospital, Dhaka, Bangladesh
Principal Contact

 10.3329/bmrcb.v45i1.41806    0000-0002-0876-297X

Abstract

Background: Preeclampsia is remained a major cause of maternal and perinatal morbidity and mortality, despite recent advances in antenatal care. Hypertension in pregnancy is responsible for 18% of foetal (>19 weeks of gestation) and infant mortality and 46% of infants born small for gestational age. Early screening for preeclampsia may allow vigilant antenatal surveillance and appropriate timing of foetal delivery in order to avoid serious sequelae. Doppler ultrasound has important screening and diagnostic capabilities for screening preeclampsia.

Objectives: The study was aimed to assess the doppler wave form in subjects with preeclampsia. Furthermore, to observe PSV, EDV, RI, PI in different groups of study subjects from 24th to 37th weeks.

Methods: This cross sectional study was carried out to observe doppler wave form in subjects with preeclampsia enrolling 40 subjects, in the Department of Radiology and Imaging, Dhaka Medical College Hospital, Dhaka, over a period of six months from 20th May 2012. Forty normal pregnancies were also included for comparison.

Results: Majority (35% in normal and 37.5% in preeclampsia) of the respondents were found in the age group of 21-30 years. Unpaired t-test revealed no significant difference between mean age between two groups. Among normal group, mean±SD PSV, EDV, PI and RI were 43.94±15.41 cm/sec and 15.51 (±4.93) cm/sec, 1.12±0.0846 and 0.571 (±0.058) respectively. Mean PSV, EDV, PI and RI were 83.19±18.44 cm/sec, 11.86±5.19 cm/sec, 2.497±0.369 and 0.8255±0.087 in preeclampsia group. There was statistically significant (By unpaired t-test) difference in mean doppler indices between these two groups. It was observed that early diastolic notch was found in 90% subjects with preeclampsia. Early diastolic notch was observed in doppler wave form in 5% subject with normal pregnancy. Chi-square test showed that there was statistically significant difference in presence of early diastolic notch between normal subjects and subjects with preeclampsia.

Conclusion: It may be concluded that doppler indices with presence of early diastolic notch are reliable indicators for early detection of preeclampsia.

Keywords: Duplex color doppler, Uterine artery, Preeclampsia, Pregnant women

Introduction

Among the various imaging tools in the Department of Radiology and Imaging, use of duplex colour doppler sonography is gaining increasing popularity for assessment of blood vessels in various disease processes around the world. The past 20 years have seen an enormous growth in both technical aspects of doppler ultrasound and its application in obstetric and foetal medicine. Vessel assessment is now much easier than ever before without involvement of radiation and contrast media.

Doppler ultrasound has important screening and diagnostic capabilities.1-3 In addition, doppler ultrasound has an important contribution to the surveillance of foetus compromised by intra uterine growth retardation (IUGR) and to assess foetal structural abnormalities and complex disease processes.1,3-5 Spectral wave of the uterine artery and vein can usually be easily obtained by using Doppler ultrasound.2,6 Furthermore, the uterine artery notch can be made visible through this ultrasound which is found significantly associated with higher risk of preeclampsia and also in general pregnant population.7

Several studies show Doppler ultrasound in first trimester does not have any impact on pregnancy outcome. But Doppler ultrasound in 2nd and 3rd trimester play vital role in determining foetal outcome. Doppler wave form showing increased resistance to flow in 2nd and 3rd trimesters are associated with poor pregnancy outcome.3 For this Continuous Wave Doppler, Pulsed Doppler, Color Flow, Powered Doppler are utilized to measure PSV, EDV, PI, RI, and S/D ratio.4,8

Despite recent advances in antenatal care, pre-eclampsia has remained a major cause of maternal and perinatal morbidity and mortality. Hypertension in pregnancy is responsible for 18% of fetal (> 19 weeks of gestation) and infant mortality and 46% of infants born small for gestational age.9,10 Early screening for preeclampsia may allow vigilant antenatal surveillance and appropriate timing of fetal delivery in order to avoid serious sequelae. Unfortunately, various haemodynamic and biochemical measures have been found to have limited accuracy as screening measures for this condition.

Pre-eclampsia is characterized by an imbalance between prostacycline and thromboxane production as well as failure of the second wave trophoblastic invasion of the endometrio- myometrial vasculature.5 The result is abnormal uteroplacental blood flow, and this has led to the idea of using doppler assessment of uterine artery velocity waveforms as a method of screening for this antenatal complication.6 An abnormal test result is represented by either an abnormal flow velocity ratio (systolic to diastolic velocity (S/D) ratio, diastolic to systolic velocity ratio (S/D) or resistance index or the presence of an early diastolic notch.11-13

Study also carried out for early diagnosis of preeclampsia (PET) by measuring uterine artery pulsatility index (PI) at 11 weeks to 13 weeks 6 day’s gestation. A more effective method of screening for PET is provided by uterine artery doppler velocimetry at 22 week’s gestation either alone or in combination with maternal history, with detection rates of 52% and 57%, respectively. Indeed, doppler is particularly effective in screening for severe PET that necessitates iatrogenic delivery before 34 weeks, with a detection rate of 85% for a false-positive rate of 10%.

Identification of women at high risk for PET during the second trimester could potentially improve pregnancy outcome because intensive maternal and fetal monitoring in such patients would lead to an earlier diagnosis of the clinical signs of the disease and the associated fetal growth restriction and avoid the development of serious complications through such interventions as the administration of antihypertensive medication and early delivery.

No previous study regarding the doppler sonography of uterine artery had been carried out in our country on pre-eclampsic mother. So, this present study was carried out to observe doppler wave form in subjects with preeclampsia. However, the wide variation in scanning techniques, doppler measurement parameters and study protocols have resulted in conflicting results.14

If it could be sonologically help the pregnant women in the early detection and management of pre-eclampsia this study will help to reduce the mortality from this widely prevalent problem in the country and as well as will help the policy makers to design national health measures guided against this fatal entity.

The uterine artery is the major blood supply to the uterus and enlarges significantly during pregnancy.9 Pregnancies affected by the complications of impaired placentation such as pregnancy induced hypertension had been shown to demonstrate increased impedance in the spiral artery.4 In subjects with preeclampsia arterial resistance is increased.1,10,13-16 This results in increase in PSV and decrease in EDV. Aardema et al observed that striking difference between PI values for PIH/PE with and without poor pregnancy outcome.16 Uterine artery PI in the 22nd week was increased significantly in pregnancies which developed early-onset (before 35 weeks) PIH/PE with a poor pregnancy outcome. Coleman et al had seen that RI value was ≥ 0.7 in subjects with preeclampsia.18 North et al found that majority of the preeclamptic women had early diastolic notch in their uterine artery doppler.17


Materials and Methods

This cross sectional study was carried out to observe doppler wave form in subjects with preeclampsia among 40 subjects. A total number of 40 normal pregnancies were also included for comparison. This study was conducted in the Department of Radiology and Imaging, Dhaka Medical College Hospital, Dhaka. Study period was six months (From May 2012 to November 19, 2012). Prior to the commencement of this study the research protocol was approved by Bangladesh College of Physicians & Surgeons (BCPS). Ethical clearance was obtained from ethical review board of the BCPS.

Subjects with clinically diagnosed case of pre-eclampsia from 24th to 37th weeks of gestation with singleton pregnancy were included in the study. A comparison group of normal singleton pregnancy from 24th to 37th weeks of gestation was also included. Multiple pregnancies, IUGR, history of DM and history of acquired illness were excluded from the study.

Doppler indices of uterine artery were measured by researcher herself first and subsequently assessed by two consultant radiologists of the Department who did not know the patient’s history to eliminate observation bias.

The objective of the study was discussed in details with the patients or their attendants before their decision to enroll themselves into the study.

Clinical examination and laboratory tests were done and data collected. Demographic information was prospectively recorded and substantiated by means of inspection of medical record. Information included was the subject’s age, medical and clinical history, followed by conduction of the study. No preparation was required before examination. Patient lied supine. Uterine artery was examined with 3-5 MHz curvilinear transducer in Siemens Sonoline 8000. The doppler velocimetry measurements of the uterine artery were taken at the point just distally to the crossover with the iliac artery, before uterine artery division into arcuate arteries. The doppler indices of uterine artery taken as outcome variables are PSV, EDV, PI, RI and early diastolic notch.

Data were collected in a pre-designed structured data collection sheets. Data were collected from primary source starting from the clinical history to laboratory investigations. Data entry and analysis were done using SPSS for windows version 19.0.


Results

Age distribution of the study subjects: The age was ranged from 18 to 42 years in normal subjects and 18 to 43 years in subjects with preeclampsia. Majority (35% in normal and 37.5% in preeclampsia) of the respondents were found in the age group of 21-30 years. 32.5% and 22.5 percent subjects were found below 20 years age group in normal and preeclampsia. t-test revealed no significant difference between mean age between two groups (figure 3).

Figure 1: Anatomy of uterine artery (After Rumbold et al8)

Pulsatility index (PI) of the study subjects: Among normal group, mean (±SD) PI was 1.12 (±0.0846). PI ranged from 0.942 to 1.245. Mean PI was 2.497 with SD of 0.369 in preeclampsia group. PI ranged from 2.193 to 2.193 in this group. There was statistical significant difference between mean PI between these two groups which was seen by t-test (figure 4).

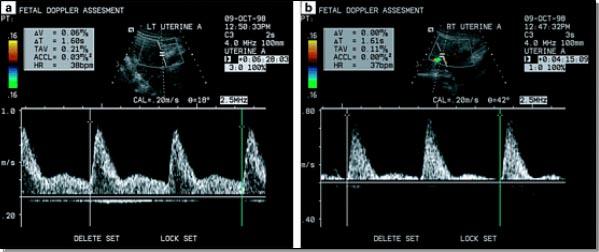

Figure 2: Abnormal uterine artery Doppler waveforms (low diastolic flow and protodiastolic notch) (After Campbell et al6)

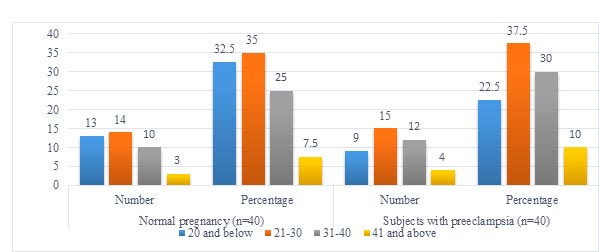

Figure 3: Bar diagram showing age distribution of the study subjects

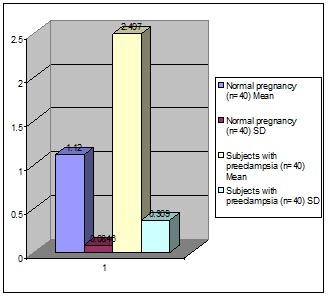

Figure 4: Bar diagram showing Pulsatility index of the study subjects

­­­Resistive index(RI) of the study subjects: Among normal group, mean (±SD) RI was 0.571 (±0.058). RI ranged from 0.516 to 0.642. Mean RI was 0.825 and SD was 0.087 in preeclampsia group. RI ranged from 0.745 to 0.745 in this group. There was statistical significant (by t-test) difference between mean RI between these two groups (figure 5).

Figure 5: Bar diagram showing Resistive index of the study subjects

Distribution of the study subjects by presence of early diastolic notch: It was seen that early diastolic notch was found in 36 (90%) subjects with preeclampsia while in only 2 (5%) subjects with normal pregnancy. Chi-square test showed that there was statistical significant difference in presence of early diastolic notch between two groups (table I).

Table I: Distribution of the study subjects by presence of early diastolic notch
Normal pregnancy (n=40)

Subjects with preeclampsia (n=40)

Number

Percentage

Number

Percentage

Statistical test

36

90

02

05

0.001


Discussion

Pre-eclampsia (PET), which affects about 2% of pregnancies, is a major cause of perinatal and maternal morbidity and mortality.1-3 Routine antenatal care has evolved with the aim of identifying women at high risk for subsequent development of PET. The likelihood of developing PET is increased by a number of factors in the maternal history, including Afro-Caribbean race, nulliparity, high body mass index (BMI) and personal or family history of PET.5 However, screening by maternal history may detect only about 30% of those that will develop PET for a false-positive rate of 10%.6 A more effective method of screening for PET is provided by uterine artery Doppler velocimetry at 22-24 week’s gestation either alone or in combination with maternal history, with detection rates of 52% and 57%, respectively.4,5,10 Indeed, doppler is particularly effective in screening for severe PET that necessitates iatrogenic delivery before 34 weeks, with a detection rate of 85% for a false-positive rate of 10%.11 Identification of women at high risk for PET during the second trimester could potentially improve pregnancy outcome .

The study was carried out to observe doppler wave form in subjects with preeclampsia among 40 preelampsic and 40 normal pregnant subjects. The age was ranged from 18 to 42 years in normal subjects and 18 to 43 years in subjects with preeclampsia. Indeed this age range of the pregnant women is common in Bangladesh. Majority (35% in normal and 37.5% in preeclampsia) of the respondents were found in the age group of 21-30 years.

In subjects with preeclamsia arterial resistance is increased.1,10,13-16 This results in increase in PSV and decrease in EDV. Similar comparable findings were seen in present study. Among normal group, mean±SD PSV was 43.94±15.41 cm/sec. PSV ranged from 28.1 cm/sec to 63.23 cm/sec. Mean PSV was 83.19 cm/sec and SD was 18.44 cm/sec in preeclampsia group. PSV ranged from 65.29 cm/sec to 95.37 cm/sec in this group. There was statistical significant difference between mean PSV between these two groups. Mean (±SD) PSV was 15.51 (±4.93) cm/sec. PSV ranged from 10.7 cm/sec to 23.5 cm/sec among normal group. Mean PSV was 11.86 cm/sec and SD was 5.19 cm/sec in preeclampsia group. PSV ranged from 6.82 cm/sec to 18.79 cm/sec in this group. Statistical significant difference between mean EDV was seen between these two groups.

Pregnancies affected by the complications of impaired placentation such as pregnancy induced hypertension had been shown to demonstrate increased impedance in the spiral artery.4 This was reflected in this study that Mean±SD PI was 1.12±0.0846 among subjects with normal pregnancy and Mean PI were 2.497 with SD of 0.369 in preeclampsia group. There was also statistical significant difference between mean PI between these two groups which was seen by t-test.Aardema et al found the similar study result.16 They observed that a striking difference between PI values for PIH/PE with and without poor pregnancy outcome. Uterine artery PI in the 22nd week was increased significantly in pregnancies which developed early-onset (before 35 weeks) PIH/PE with a poor pregnancy outcome.

The spiral artery, the major continuation of the uterine artery undergoes trophoblastic invasion during pregnancy. This physiological process is characterized by loss of the musculoelastic properties and its conversion to the uteroplacental arteries, which allows an increased blood flow to the placenta and the fetus. This process commences in the first and ends in early second trimester.8 Second trimester Doppler is usually performed between 20th and 24th weeks of pregnancy, when it is expected that the physiologic process would have been completed. The impairment or complete absence of the physiological process is associated with increased vascular resistance to blood flow and ultimately affect blood flow into the placenta.9-11 This phenomenon was reflected in this present study. In present study, mean (±SD) RI was 0.571 (±0.058) cm/sec in normal subjects while it was increased in case of preeclampsia. Mean RI was 0.825 and SD was 0.087 in preeclampsia group. In a comparable study by Coleman et al it was observed that RI value was ≥ 0.7 in subjects with preeclampsia.18 It was seen that early diastolic notch was found 36 (90%) subjects with preeclampsia. Early diastolic notch was observed in doppler wave form in 2 (5%) subjects. North et al found that majority of the preeclampsic women had early diastolic notch in their uterine artery doppler.17 Harrington et al performed two mid pregnancy screening studies of antenatal population in the last three years, to assess the use of Doppler velocimetry studies at that time in predicting the subsequent development of PPIH.15 There was a significant association between an abnormal RI and the subsequent development of PPIH. There was presence of a pre diastolic notch as well as an elevated RI in preeclampsic subjects.


Conclusion

It was observed that mean±SD PSV, EDV was 83.19±18.44 cm/sec 15.51±4.93 cm/sec respectively in preeclampsic group. Mean±SD PI was 1.12±0.0846 and mean (±SD) RI was 0.571 (±0.058) cm/sec. There was statistical significant (by t-test) difference between mean PSV, EDV, PI and RI between preeclampsic and normal subjects. It was revealed that early diastolic notch was found 36 (90%) subjects with preeclampsia. So, these doppler indices with presence of early diastolic notch are reliable indicator for early detection of preeclampsia.

Conflict of interest: The author declare no conflict of interest.
